Power Supply

ELITE series systems are mainly used for nucleic acid, SDS-PAGE, and blotting applications. It always keeps the run in highly accurate and stable condition. For more than decade, the ELITE Power Supply family has offered unsurpassed quality and is today the premium and trusted choice by life science market professionals.

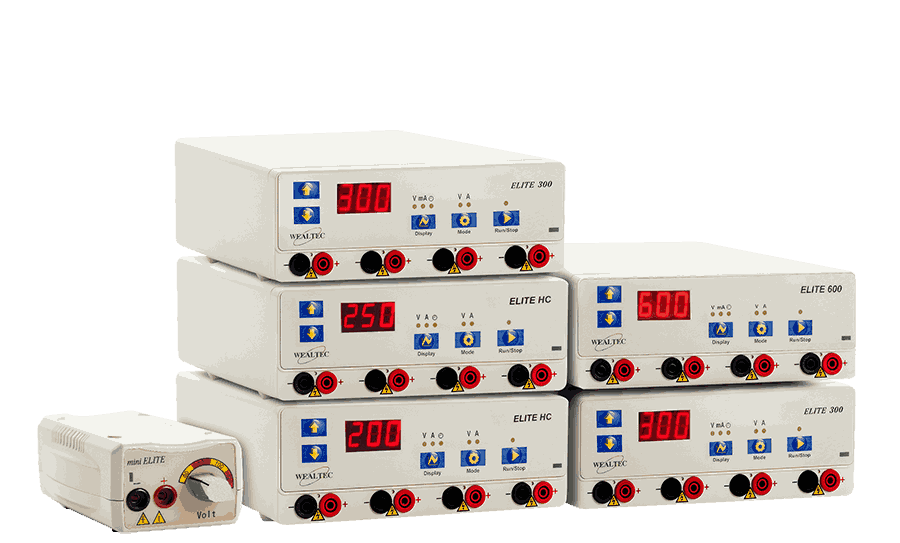

Elite power supply

Features

  • No load detection, sudden load change, over voltageprotection, automatic recovery after power failure, short circuit, current differential alarm
  • Three-digit seven-segment LED read out voltage, current and time
  • Small footprint, stackable, outer shell use fire resistance material
  • Complete error messages for trouble shooting
  • Membrane key pad for functional setting
  • Up to four sets output

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model ELITE HC 2.5 ELITE HC 3.0 ELITE 300U ELITE 600U Mini ELITE
Constant Voltage Yes Yes Yes Yes No
Constant Current Yes Yes Yes Yes No
Output Terminals 4 sets 4 sets 4 sets 4 sets 1 set
Current adjust steps 0.01-2.5 A
in 0.01 A		 0.01-3.0 A
in 0.01 A		 1-500 mA
in 1 mA		 1-750 mA
in 1mA		 -
Voltage in 1 volt steps 2-250 V 2-300 V 2-300 V 6-600 V 50 /80 /100 /120 V
Output power 200 W max. 300 W max. 90 W max. 150 W max. 20 W max.
Operation Temperature 0-40ºC 0-40ºC
Timer 0-999 mins -
Display 3-digit 7-segment LED -
Touch Pad Yes Selectable switch
Alarm Yes -
Input Power 100-240 V, 50-60 Hz 90-264 V, 50-60 Hz
Dimensions (W x D x H) 240 x 320 x 73 mm 84 x 175 x 52 mm
Weight 2.2 kg 2 kg 0.6 kg
Certification CE
*The spec is subject to change without prior notice.
** ELITE HC 2.5 /HC 3.0 /300U /600U power supply comply with EN 61010-1

Relative Product

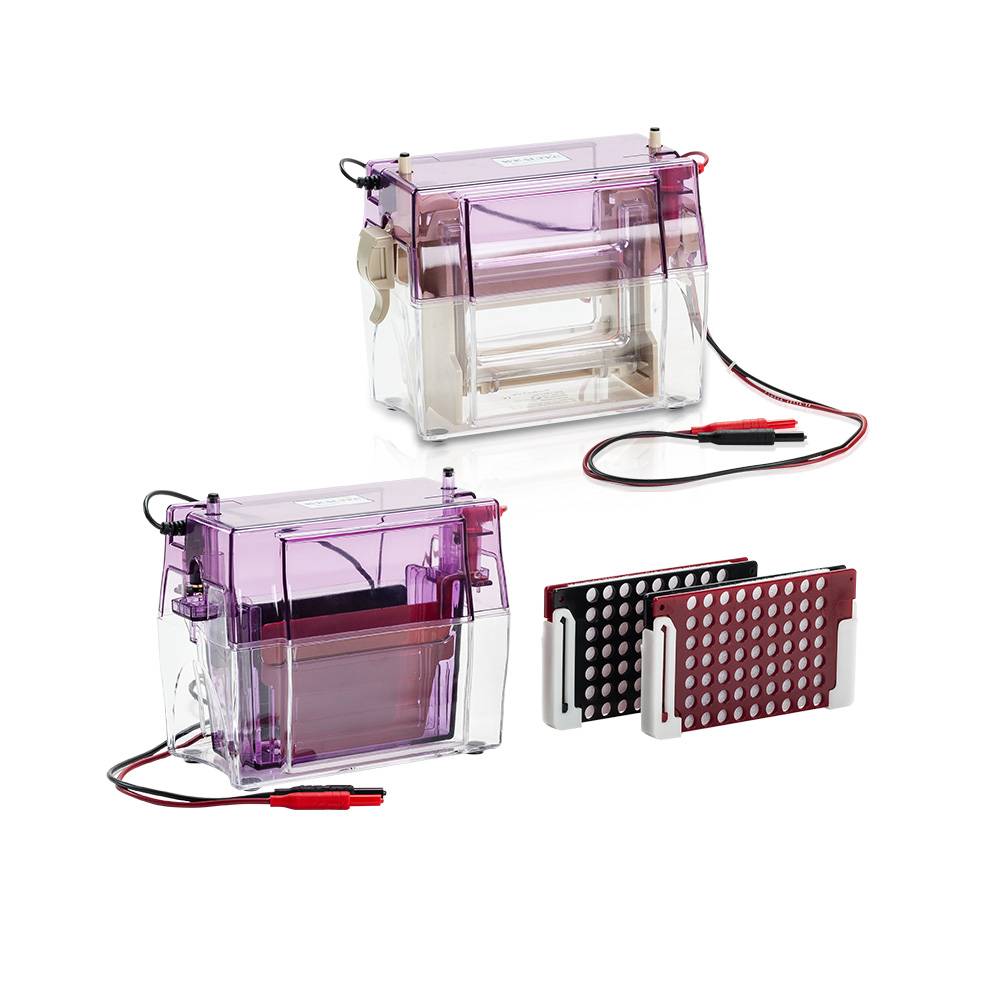

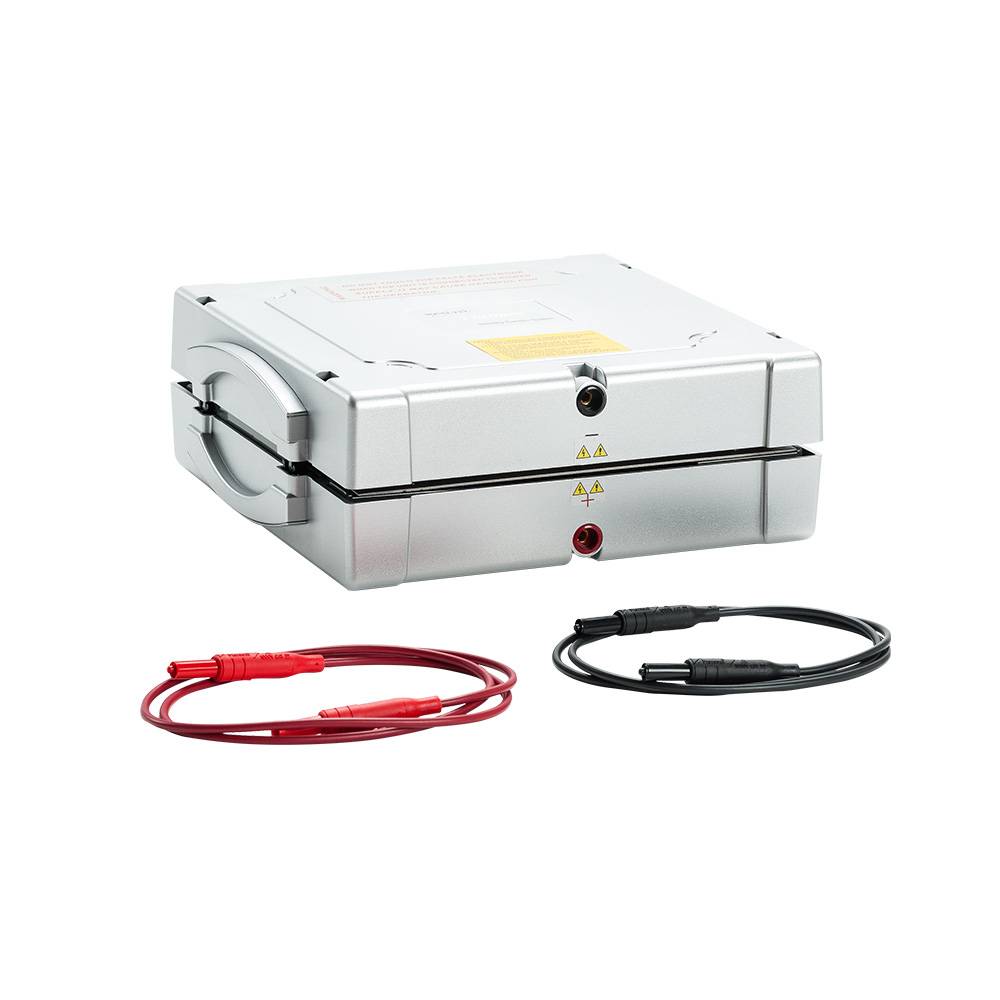

V-GES and E-Blotter
V-GES and E-Blotter

ELITE 300U/600U is suggested for vertical electrophoresis

V-GES and E-Blotter

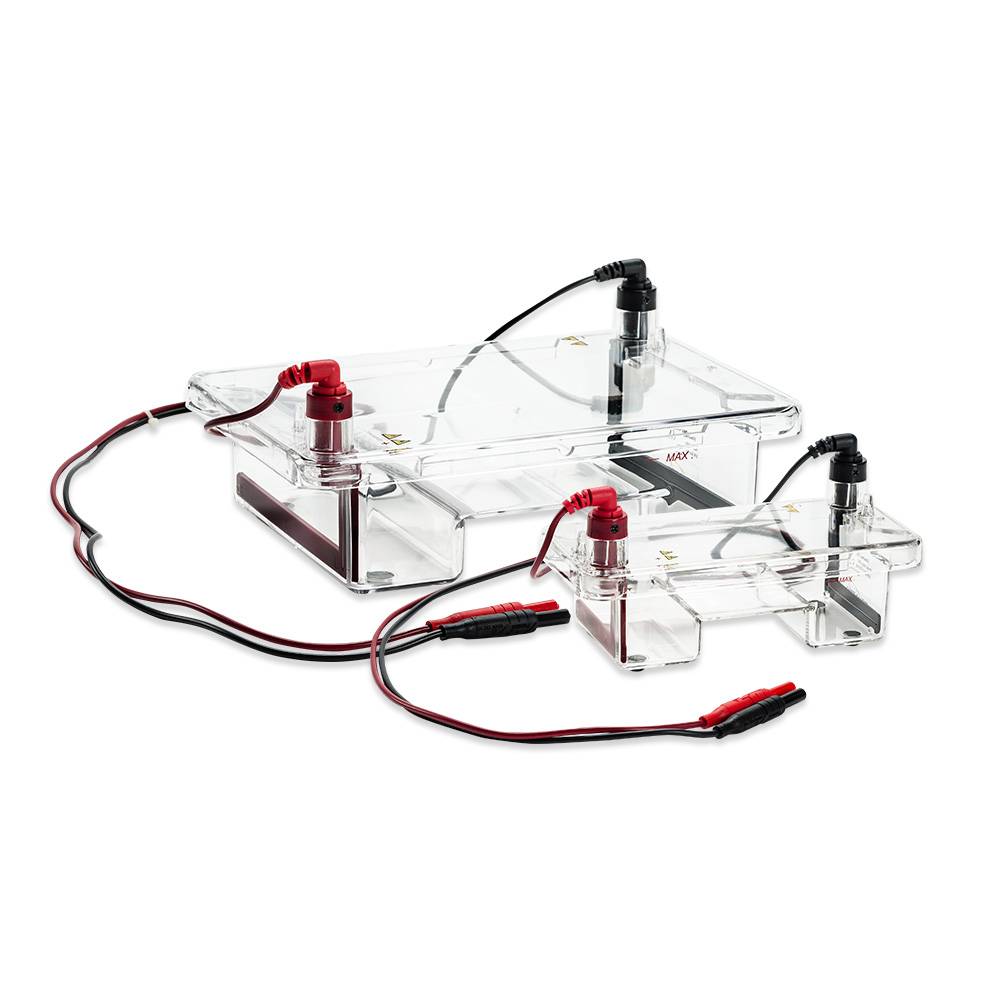

GES and Mini GES

ELITE 300U/600U is suggested for agarose gel electrophoresis

V-GES and E-Blotter
Yrdimes

ELITE HC series are recommended power supplies for combination as a perfect electrophoresis system.
