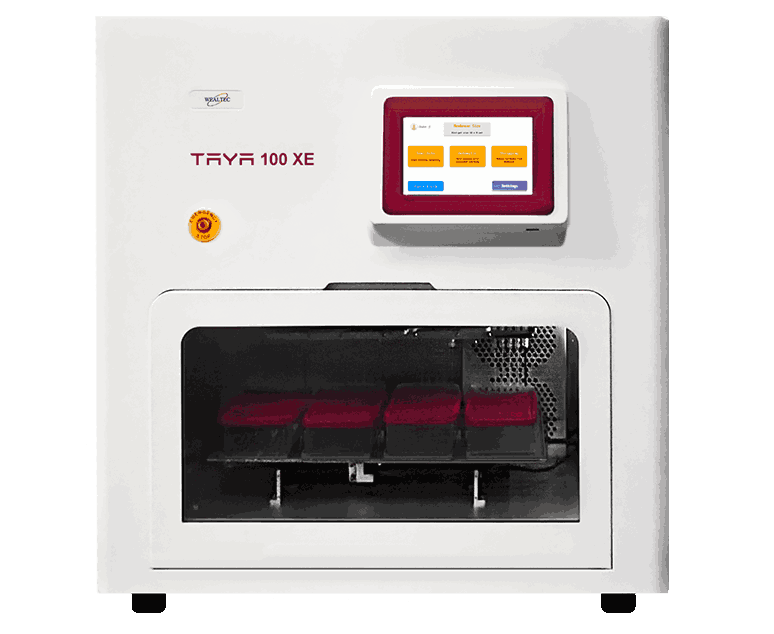

Auto Western Blot Work Station

TAYA 100/100XE is the first automatic, result repeatable western blot workflow work station in the market. Place and pick concept bring highest efficient in western blot process, not only economize on manpower but also minimize the working time; 7” touch panel as control and status display; waste drain, shaking of membrane box are all controlled by in-build program. Reagents storage at 4ºC by PWM controlled temperature cabinet, individual diagraph pump and valve set are the core of TAYA 100XE, all workflow controlled by different program.
TAYA 100/100XE

Features

  • One button to ECL ready
  • No more errors by operator
  • Save manpower and reagents
  • Flexible for all WB workflow
  • Auto stripping capability
  • Low-cost high reliability

Applications

  • Immunology research laboratory
  • Medical research
  • Activity of antibody test
  • Life science research laboratory
  • Clinical/diagnostic laboratory
  • Education and academic

Specifications

Model TAYA 100 TAYA 100XE
Peltier controlled Temp. Module N/A, R-T 3 sets
Workflow mode selection 8 workflows 10 workflows
Control with touch panel 7” LCD display
System condition display Yes
Membrane pan 4
Primary Anti-body add Manual Auto
Secondary Anti-body add Manual Auto
Primary Anti-body recollection Yes
Stripping capability N/A 37ºC
Auto waste drain Yes
Adjustable shaking speed Yes
Wash time adjustable Yes
Cycles of wash adjustable Yes
Temp. of reagent storage chamber RT 4ºC
Reaction zone RT 25ºC / 0ºC selectable
Method save/recall Yes
Emergency stop button Yes
Dispensing channel 4
Waste drain channel 4
Operation Temperature 0-45ºC
Dimensions (W x D x H) 720 x 55 x 740 mm
Power requirement 96-240 V, 120 W
Weight 45 kg 65 kg
The spec is subject to change without prior notice.
