Agarose Gel Electrophoresis

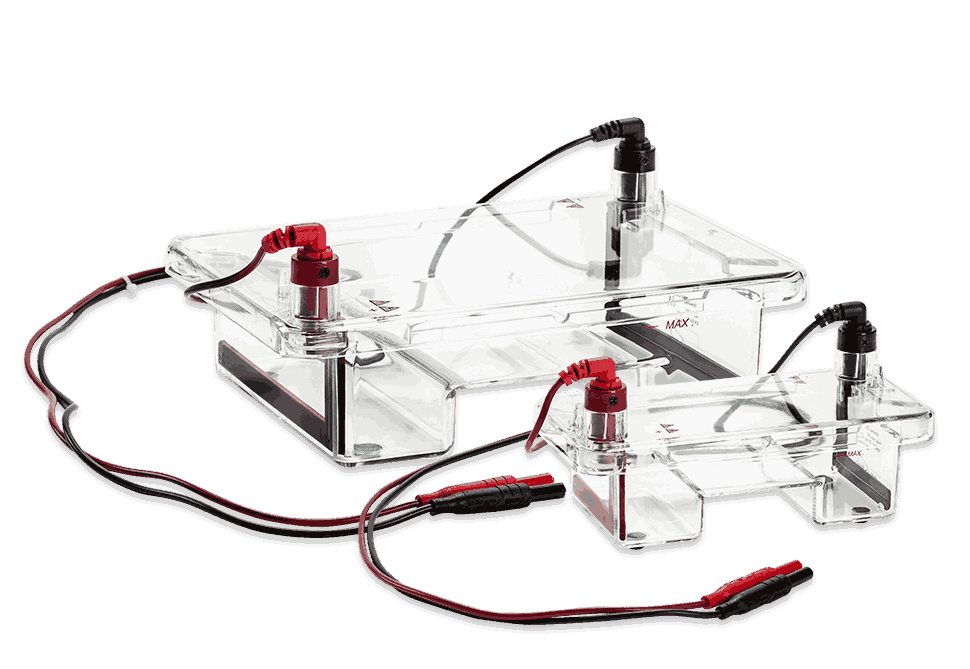

The submarine cell GES and Mini GES is comprised of a gel tank, gel tray, top lid, casting module, and red/black L type electrode. This unit is built using injection mode technology, and its invention Dams-claw* ensures no leakage while gel casting. Different size trays and combs load different volume nucleic acid samples. The quick-assembly L type electrode can be easily cleaned and replaced with its platinum wire.
GES and Mini GES

Features

  • Unique anti-leakage design for gel casting system
  • Fluorescence rule printed on the sample tray
  • UV transparent sample tray

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model GES Mini GES
Fluorescent ruler Yes Yes
Tray size 100 x 150 mm / 70 x 150 mm / 150 x 150 mm 100 x 70 mm / 65 x 70 mm
Number of teeth 15, 20 15, 10
Thickness of comb 0.75/1.0/1.5 mm
Electrode Gold-plated electrode with platinum wire
Cable Safety black and red cable
Leakage free gel casting Dams-claw*
Sample throughput Max. 40 mL Max. 30 mL
Buffer volume 650-1000 mL 200-270 mL
HzDimensions (W x D x H) 270 x 175 x 100 mm 200 x 95 x 85 mm
Weight 2 kg 1 kg
Certification CE
Recommended power supply ELITE U series
*The spec is subject to change without prior notice.
** ELITE HC2.5/3.0 and ELITE 300U/600U power supply comply with EN 61010-1

Relative Product

Elite
ELITE U series

ELITE power supply is suggested to get excellent result

Accessories

Catalog No. Mini GES
1012101 Mini GES Cell UV-transparent tray 6.5 x 7 cm
1012102 Mini GES Cell UV-transparent tray 10 x 7 cm
1012201 Mini GES Cell 10 teeth fixed-height comb, 0.75 mm thick
1012202 Mini GES Cell 10 teeth fixed-height comb, 1.0 mm thick
1012203 Mini GES Cell 10 teeth fixed-height comb, 1.5 mm thick
1012204 Mini GES Cell 15 teeth fixed-height comb, 0.75 mm thick
1012205 Mini GES Cell 15 teeth fixed-height comb, 1.0 mm thick
1012206 Mini GES Cell 15 teeth fixed-height comb, 1.5 mm thick
Catalog No. GES
1012103 GES Cell UV-transparent tray 7 x 15 cm
1012104 GES Cell UV-transparent tray 10 x 15 cm
1012105 GES Cell UV-transparent tray 15 x 15 cm
1012207 GES Cell 15 teeth fixed-height comb, 0.75 mm thick
1012208 GES Cell 15 teeth fixed-height comb, 1.0 mm thick
1012209 GES Cell 15 teeth fixed-height comb, 1.5 mm thick
1012210 GES Cell 20 teeth fixed-height comb, 0.75 mm thick
1012211 GES Cell 20 teeth fixed-height comb, 1.0 mm thick
1012212 GES Cell 20 teeth fixed-height comb, 1.5 mm thick
1012407 A pair of electrode adaptors (red one and black one) -- US type
1012410 A pair of electrode adaptors (red one and black one) -- UK type
The spec is subject to change without prior notice.
*Patent no.: 203646 / US6,576,109 B1 / 2000-006995 / 20017041.4
*Dams-claw is the patent of Wealtec Bioscience
