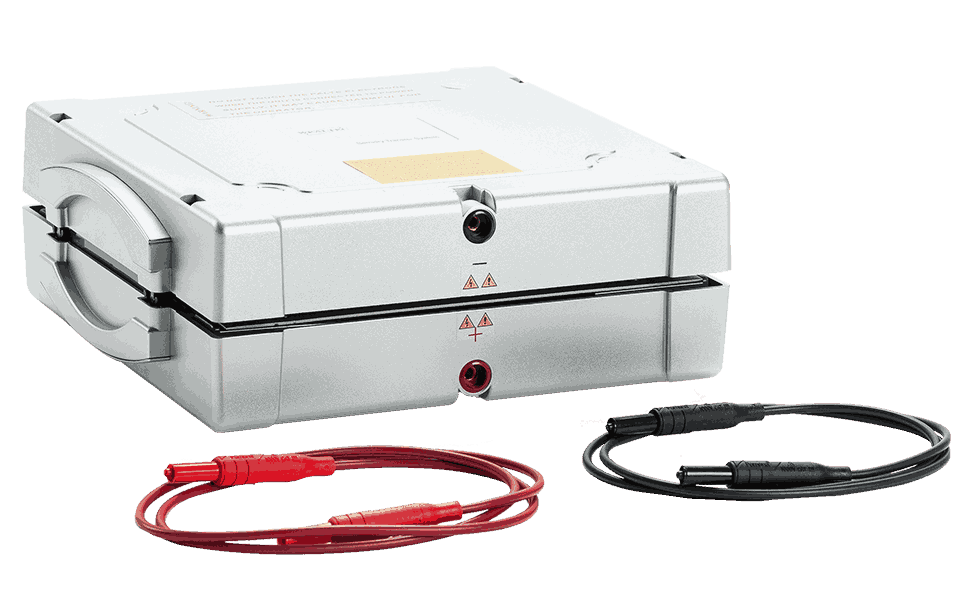

Semi-dry Blotter

Yrdimes is a fast-blotting device for agarose and protein gel, with a unique Bi-directional force* design that employs eight pieces springs to provide the most even force during blotting. Capable of applying a single layer of four side-by-side mini gels, a maximum of 18 x 20 cm gel, or transferring three stacking layers of polyacrylamide gels. It is time-effective for single or multiple blotting.
Yrdimes

Features

  • Reliable low-cost semi-dry apparatus in the market
  • Fast western blotting protocol less than 7 minutes
  • Easy to clean and assemble device in the market
  • Less than one hour transferring time
  • Long life anti-corrosive electrode

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model Yrdimes
Gel size (W x H) Max. 4 pieces 100 x 80 mm
Electrode size 205 x 205 mm with 1 mm thickness
Transfer area 180 x 200 mm
Anode Platinum plated on titanium plate
Cathode 316 stainless steel plate
Minimum transfer time 7 minutes
Force Simultaneously up and down force by 8 springs*
Dimensions (W x D x H) 225 x 225 x 85 mm
Weight 1.2 kg
Operating environment Temp: 0-40°C, Humidity: 10-90% R.H. Non-condensing
Certification CE
*Bi-directional force is the patent of Wealtec Bioscience
Patent No.: 217120 / 2001-001686 / US 6,592,734 B2
The spec is subject to change without prior notice.
