High Throughput Electrophoresis

Multi-Cell is designed for high throughput protein gel electrophoresis. This system equipped with cooling manifold to connect with optional water chiller for cooling and maintain the buffer at constant temperature. Eight pieces protein gel can run simultaneously, and ELITE 600U power supply also serves perfect combination and excellent result to the Multi-Cell.

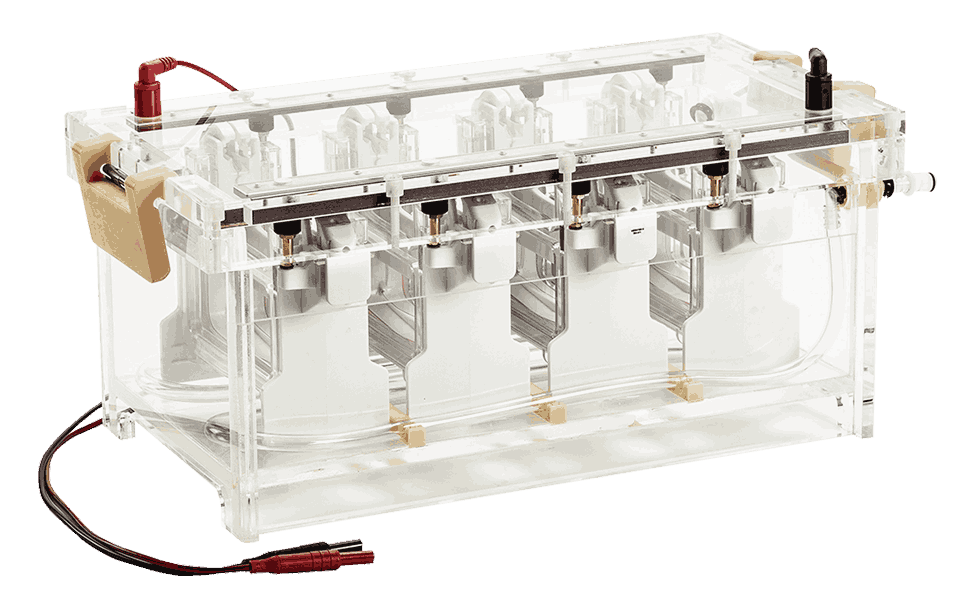

Multi-Cell

Features

  • Proteomics research and protein screening purpose
  • Easy to clean buffer tank without contamination
  • 2-Dimensions gel electrophoresis available
  • High throughput routine laboratory
  • Low cost and high efficiency

Applications

  • Proteomics research core facility
  • Large sample laboratory

Specifications

Model Multi-Cell
Gel size (W x H) 100 x 80 mm
Glass plate size (W x H) 100 x 130 mm
Gel thickness 1.0/0.5/0.75 mm
Number of gels 8 gels simultaneously
Electrode module w/platinum wire 4*
Gel casting module 8*
Buffer volume 3 to 5.5 L
Cable High efficiency black and red cable
Dimensions (W x D x H) 432 x 226 x 195 mm
Weight 8 kg
Recommended power supply ELITE 600U
Certification CE
Cooling External water chiller
*The spec is subject to change without prior notice.
*Patent No.:M277920 / ZL 2005 2 0009035.8 / Nr. 20 2005 005 050.4 / 2005-002015 / US 7,544,279 B2

Relative Product

V-GES and E-Blotter
ELITE 600U

ELITE power supply is suggested to get excellent result

Ordering Information

Catalog No. Accessories
1037201 Multi-Cell upper lid
1037202 Multi-Cell cooling chamber
1037203 Multi-Cell electrode module, 1 set
1031002 Casting module, 1 set
1031005 Glass plate set, includes thick glass plate/5 pcs and u-shape glass plate/5 pcs
1032001 0.5 mm spacer 15 x 100 mm, 2 pcs
1032002 0.75 mm spacers 15 x 100 mm, 2 pcs
1032003 1.0 mm spacers 15 x 10 mm, 2 pcs
1032101 0.5 mm 10-teeth comb, 1 pc
1032102 0.75 mm 10-teeth comb, 1 pc
1032103 1.0 mm 10-teeth comb, 1 pc
1032111 0.5 mm 15-teeth comb, 1 pc
1032112 0.75 mm 15-teeth comb, 1 pc
1032113 1.0 mm 15-teeth comb, 1 pc
1035009 Casting rubber, 2 pcs
1035401 Thick glass plate 100 x 130 mm, 5 pcs
1035402 U-shape glass plate 100 x 130 mm, 5 pcs
1035501 One-gel gate, 1 pc
1035502 Glass plate separator, 1 pc
1035503 Alignment card, 1 pc
1037901 Water Chiller for Multi-Cell, 120 V
1037902 Water Chiller for Multi-Cell, 230 V
