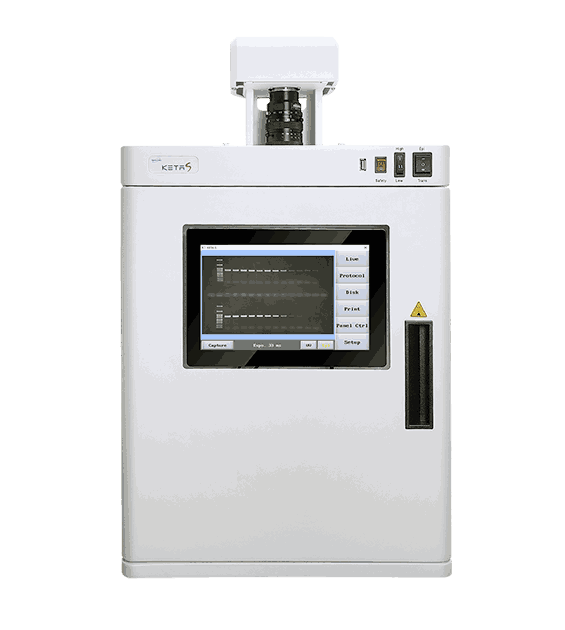

KETA S

KETA S is a research grade cost effective gel documentation system ideally for routine and large throughput molecular biology laboratory. This unit equipped with 16-bit B/W 5.0 megapixels camera, manual adjust lens, superior performance and convenient user interface, small footprint darkroom, 10.1” touch LCD display, in-build SBC, MS windows OS, USB 2.0/3.0 port, multiple languages, UV radiation safety interlock, 24 V power supply in build as standard for BW-20 blue and white light transilluminator.
KETA S

Features

  • Powerful Dolphin 1D software upgradable
  • High sensitivity low cost in the market
  • Flexible upgrade for all application
  • No service and operation training
  • Gel excision side hole option
  • Multiple language support

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model KETA S
Camera depth B/W 16 bit
Chip size 2/3"
Resolution 5.0 M pixels
Cooling Air, R-T
Operating temperature 0-60ºC
Lens f1.4, 11.5-69 mm (6X) manual adjustment
Filter Close-up 2X and H-T Amber filter
Communication USB 2.0 x 3, USB 3.0 x 1, Wi-Fi, Ethernet
Epi light source Overhead dual white light LED
UV transilluminator 302 nm, 6 x 8 W tubes, 25 x 25 cm as standard
Control & display 10.1" 16:10 visual angle adjustable touch screen
Image storage USB memory stick / SSD 8 G standard
Dimensions (W x D x H) 420 x 460 x 680 mm
Power 100-240 V, 50-60 Hz
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1144001 Dolphin-1D software
1144012 Dolphin-1D software instead of standard Band Tool software
1146001 UV/White light converter plate
1146002 UV radiation block cover for gel excision
1146021 BW-20 B&W light transilluminator 20 x 20 cm with power adaptor and orange cover, 100-240 V, 50/60 Hz
1147101 Band Tool software
1151251 MD-25K UV transilluminator, 120 V, 60 Hz, 302 nm, 25 x 25 cm filter size
1151252 MD-25K UV transilluminator, 230 V, 50 Hz, 302 nm, 25 x 25 cm filter size
1151253 MD-25K UV transilluminator, 100 V, 50-60 Hz, 302 nm, 25 x 25 cm filter size
1151259 MD-25DK Dual wavelength UV transilluminator, 100-240 V, 50-60 Hz, 302/365 nm, 25 x 25 cm filter size,compatible with KETA family imaging system
1155007 MC 100 RGB / white light LED light source in lieu of U7 epi LED (factory install)
1155006 MC100-1 Epi source, GBW / UV 365 nm in lieu of standard MC 100 (factory install)
1155008 MC100-2 Epi source, GBW / IR 780 nm in lieu of standard MC 100 (factory install)
1141301 High transparent filter 550-630 nm, 46 mm
8106041 HD-25K 365 nm UV transilluminator 25 x 25 cm filter size in lieu of standard MD-25K, 100-240 V, 50-60 Hz (factory install)
8106042 MD-25KD 302/365 nm UV transilluminator, 25 x 25 cm filter size in lieu of standard MD-25K, 100-240 V, 50-60 Hz (factory install)
8106211 Wi-Fi module (factory install)
8206221 Gel excision side hole (factory install)
8106222 Three position filter changers (factory install)
1146003 Digital thermal printer
1147007 Thermal paper 5 rolls/pack
