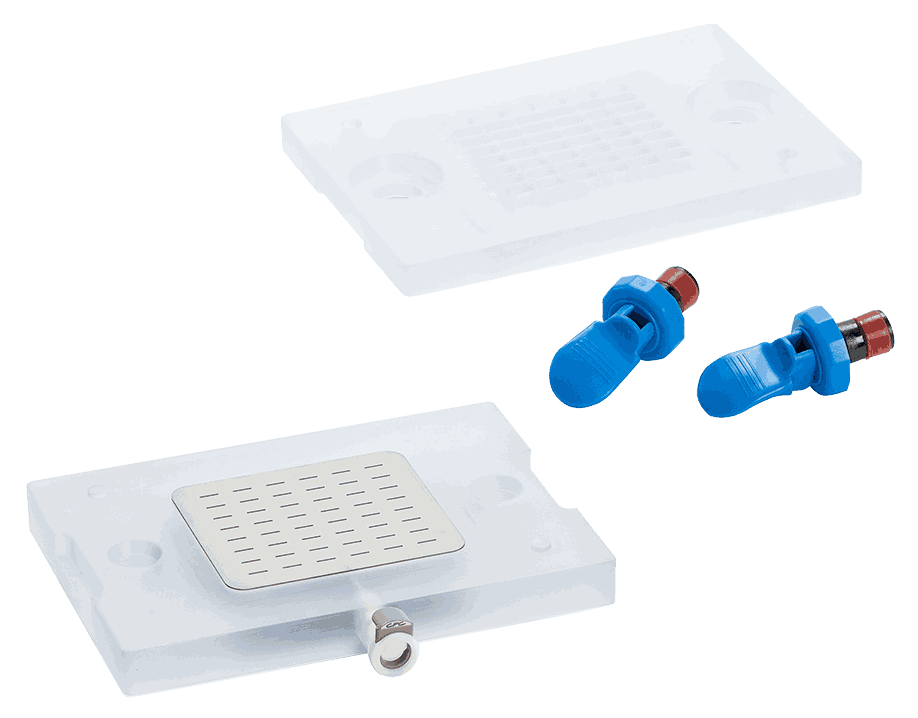

Vacuum Blotter

SB-10 vacuum blotting is the simple and convenient method for screening recombination clone, protein, and DNA/RNA, up to 700 μL per well volume for sample loading results are easily qualified by scanning of densitometer.
SB-10

Features

  • Unique well edge sealing design prevents cross-contamination between wells and producing high quality blots
  • Simple and convenient method for screening recombination clone, protein, and DNA/RNA
  • 48-slot arrangement is compatible with multichannel pipette
  • Flip stopper makes assembly simple and time-saving
  • Up to 700 μL per well volume for sample loading

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model SB-10
Design Screw-less flip stopper
Material of main body Poly carbonate
Membrane support plate 316 stainless steel
Sample format 6 x 8 wells
Sample volume per well Max. 700 μL
Membrane size (W x D) 97.8 x 83.8 mm
Slot size (W x D) 6.9 x 0.9 mm
Vacuum Water flow or vacuum pump
Dimensions (W x D x H) 200 x 140 x 35 mm
Weight 2 kg
Connection Quick fit by finger
Certification CE
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1051101 Filter paper 100 pcs/pkg, 9 x 7 cm
1051112 Sealing O-ring, one pair
1051113 Flip stopper, 2 pcs
1051114 Aspirator pump
1051115 Vacuum hose with Quick fit connector assembly
