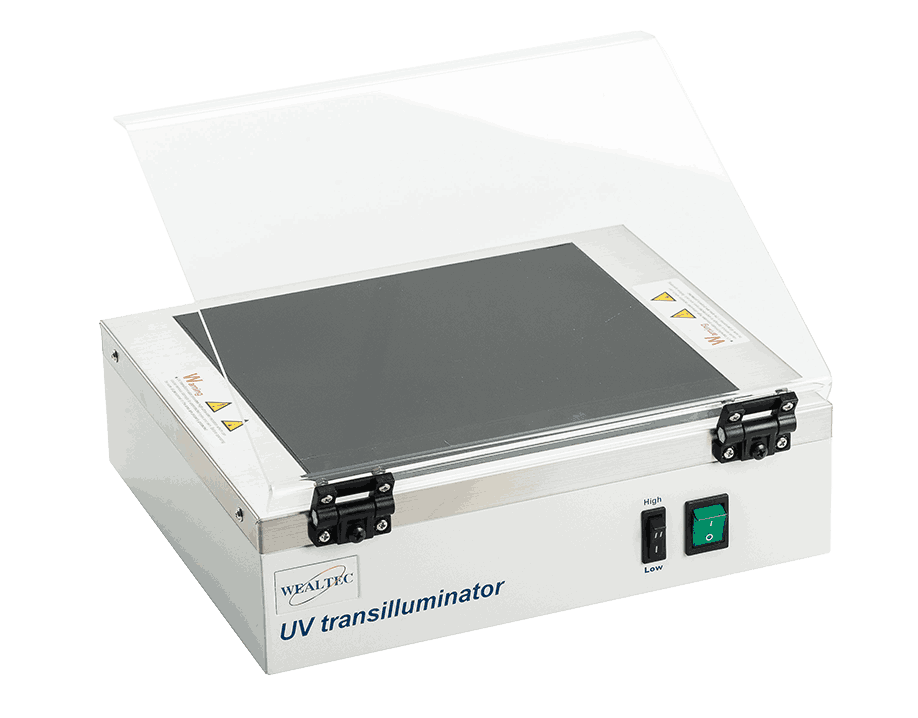

UV Transilluminator

Compact benchtop MD series UV Transilluminator cover as standard, IR cut Off Filter to prevent IR energy penetrate target agarose/acrylamide gel visualization stained by EtBr, SYBR® Green, SYBR®Gold, SYPRO® Ruby, SYPRO® Orange. MD series for 302 nm, HD series for 365 nm, and SD series for 254 nm all equipped with electronics booster without starter.
HD/MD 20/25

Features

  • Low cost
  • High/Low intensity selectable
  • UV radiation blocking cover
  • Low background
  • Long life time UV tubes
  • Anti-corrosive working surface

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model UV Transilluminator
Filter size 200 x 200 mm / 250 x 250 mm
Filter type Low background filter
Wavelength 254/302/365 nm
Light source 8 W x 6 tubes
Switch High/Low intensity switchable
Cover frame material 316 Stainless steel
Protection cover Yes
Power 100-240V, 50/60 Hz
Dimensions (W x D x H) 320 x 280 x 90 mm
Weight 7.4 kg
Certification CE
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1142110 UV protection cover (visualization)
1146002 UV radiation block cover for gel excision
