Bio-Spectrophotometer

Benchtop SpectroArt200 and SpectroArt200S bio-spectrophotometers are dedicated for determination of protein and nucleic acid concentration in molecular biology labs. SpectroArt 200S equipped with Single Drop function that consists of internal calibration for applying with Traycell*. Applicable sample volume ranges from 5 μL down to 0.7 μL by using 1.0- and 0.2-mm cap. Simply recalibrate the cell alignment with single point recalibration function when exchanging the Traycell with other cuvettes.

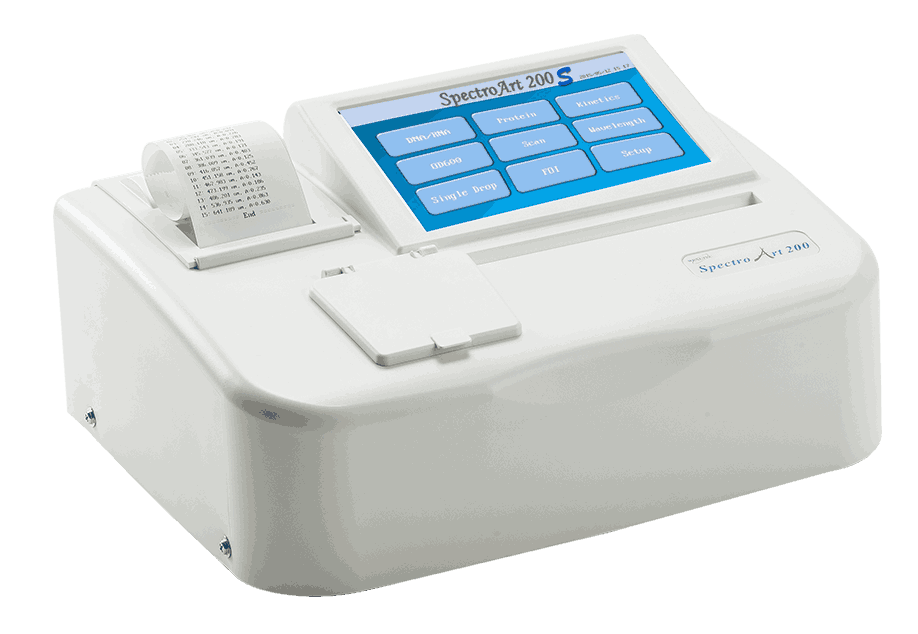

SpectroArt200/200S

Features

  • Pre-set single drop analysis for 0.7-5 μL volume
  • Compact, Fast, Accurate, Simple, Small footprint
  • Optical resolution less than 1 nm
  • Single point recalibrate function
  • Ten wavelength peak pick
  • Real-time result storage
  • PC software available

Applications

  • Fluorescent nucleotide probe labeling density determination
  • Education, university, academic, and research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Water testing and colorimetric analysis
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model SpectroArt 200 SpectroArt 200S
Light source Flash Xenon lamp
Detector 2048-elements linear silicon CCD array
Display 7” touch screen TFT LCD
Wavelength range 200-800 nm
Wavelength accuracy ± 1.5 from 200-800 nm
Abs/Photometric accuracy ± 0.01 nm @ 1 & 0.5 AU
Abs/Photometric repeatability ± 0.01 nm @ 1 AU; ± 0.004 nm @ 0.5 AU
Stray light < 0.05% @ 600 nm; < 0.1% @ 435 nm
Photometric noise 0.003 @ 0 AU, 550 nm
Spectral bandwidth < 2 nm
Absorbance range 0-3.5 AU
Data collection speed 10 to 200 ms
Light path 10 mm
Z-dimension 8.5 mm
Multiple wavelength 10 Max.
Sample test repetition 10 Max.
Analytic data storage 999 Max.
Kinetic analysis range 60-6000 sec.
Communication port RS 232 x 1, USB 2.0 x 2
Single beam Yes
Applicable cuvette types Standard /Semi-micro /Micro-volume
Pre-set single drop analysis Option Standard
DNA /RNA /Protein /Wavelength Standard
Kinetics /OD 600 /Scan /FOI Standard
PC software Option
Printer Built-in
dsDNA recommended working range - 10-100 μg/mL; 100-8000 μg/mL @ single drop mode
Dimensions (W x D x H) 320 x 255 x 150 mm
Weight 4.5 kg
Power Input 100-240 VAC, 50-60 Hz Max. 50 W
Certification CE
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1211001 Standard cuvette, 3.5 mL 10 mm light path, quartz, black wall, 2 pcs
1211002 Semi-micro cuvette, 1.4 mL 10 mm light path, quartz, black wall, 2 pcs
1211003 Micro cuvette, 700 μL, 10 mm light path, quartz, black wall, 2 pcs
1211005 Single Drop Fiber-Optic Ultra-Micro Cell 0.7~5 μL, light path 1.0/0.2 mm, 1 pc (TrayCell*)
1211006 Disposable cuvette, 3.5 mL, 100 pcs/pkg
1211011 Cap for TrayCell*, light path 0.1 mm, Quartz SUPRASIL ® with aluminum mirror
1211014 Liquid Holmium Oxide wavelength reference standard
1211015 Micro cuvette, Z-8.5 mm, 10 mm light path, 50-100 μL sample volume, black wall, Quartz, 1 pc
1211016 Micro cuvette, Z-8.5 mm, 10 mm light path, 30-100 μL sample volume, black wall, Quartz, 1 pc
1211021 Neutral Density Filter Set
1211022 Potassium Dichromate
1212001 Thermal printer paper, 5 rolls/pkg
1212011 SpectroArt 200 Single drop software upgrade package
1212012 PC Software with USB cable
1212013 Calibration fee of ART200
1212301 3Q document with tools for SpectroArt200
*TrayCell is a product from Hellma ®and Hellma® is a registered trademark of Hellma GmbH & Co. KG
