Multi-Purpose Imaging System

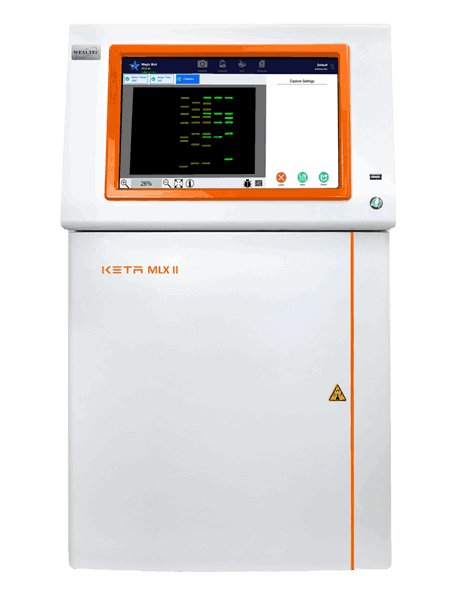

KETA MLX II is a high-end multipurpose research grade imaging system, ideal for molecular biology core facility. KETA MLX II is a smart software-controlled image system that comes with an SBC and a 12" touch panel LCD. It is not only available for traditional gel documentation but also for stain-free gel UV activation. MLX II is the most sensitive and high-resolution system in the market, owing to the high S/N of 9.1 megapixels, large chip size, and Peltier cooled camera with temperature down to 40°C below ambient.
KETA ML

Features

  • Sample tray smart drive technology
  • Operator management capability
  • UV epi excitation
  • Small footprint professional software report
  • Support various file formats, PCX, TGA, DFN (GEL),PNG, IMG, TIFF, BMP, JPG, GIF, and etc.

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model KETA MLX II
Camera depth 16-bit
Dynamic Range > 4.0
Operating temperature 0-40ºC
Chip size 1"
Resolution 9.1 M pixels
Communication Wi-Fi, USB
Pixel Size 2.4 x 2.4 μm
Cooling Peltier, 40ºC below ambient
Lens f0.95 / motorized
Filter wheel 46 mm, seven positions
Internal light source MC 300/460 nm to NIR 780 nm
UV transilluminator MD-20S 302nm
Trans light Sample Tray ST-BW 20 Blue and White light,20 x 20 cm
Sample Tray White/Black
Software Magic MP
OS system MS Windows 11
Dimensions (W x D x H) 400 x 465 x 690mm (W x D x H)
Weight 30 kg
Power 100-240 V, 50-60 Hz
Optional
External Touch Screen 20” LCD Screen with touch panel
Thermal printer Digital
Laser printer Color Laser Printer
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1155031 Addition key board and mouse
1155032 External 20” LCD with touch panel
1146003 Digital Thermal printer
1146007 Thermal paper 5 rolls/pack
