Chemiluminescent and Fluorescent Imager

The KETA ME/M/ML is the benchmark for protein detection imagers. It includes both Chemiluminescence and Fluorescence imaging capabilities, with an optional NIR excitation package, f0.95 lens with auto-focus, editable exposure programs, and a one-click Auto exposure or Auto Quant exposure, satisfying the needs of all blot and gel imager customers. In addition, its smart sample tray drive can quickly and accurately set optimal parameters for image capture automatically. The imager supports methods save/recall for subsequent exposures and professional reporting. Communication options include Ethernet, Wi-Fi, or export via a memory stick. A small footprint, scientific-grade camera, and a comprehensive software package are standard.

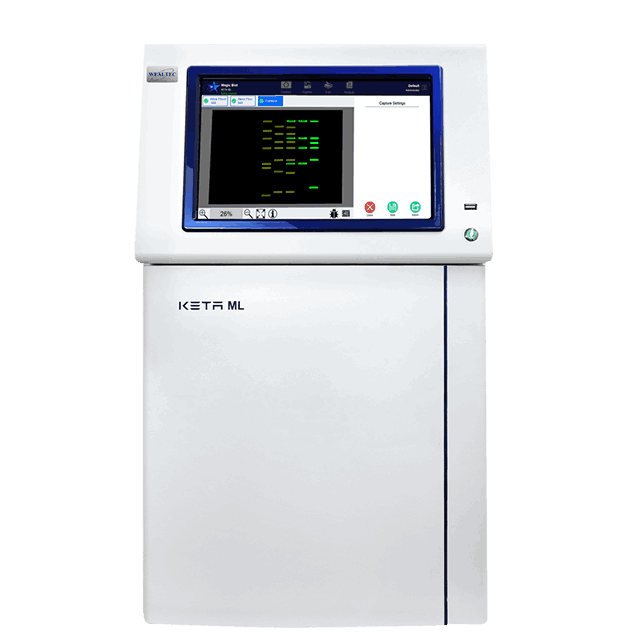

KETA ML

Features

  • Sample tray smart drive technology
  • Auto-Focus lens
  • Operator management capability
  • Small footprint, professional software and report
  • Support various file formats, PCX, TGA, DFN (GEL),PNG, IMG, TIFF, BMP, JPG, GIF, and etc.

Applications

  • Blot Chemiluminescence and Fluorescence
  • Gel Image Safe dye stain capability
  • Drug discovery and Biotechnology company
  • Clinical and biomedical Lab
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model KETA ME KETA M KETA ML
Camera depth 16-bit
Dynamic Range > 4.0
Operating temperature 0-40ºC
Chip size 1"
Resolution 9.1 M pixels
Communication Wi-Fi, USB 3.0
Pixel Size 2.4 μm x 2.4 μm
Cooling Peltier, 40ºC below ambient
Lens Manual Adjust f0.95
Optional auto focus f0.95
Auto focus f0.95
Filter wheel - 46 mm, six positions
Internal light source U6 MC 30 MC 300
Filter - WK301/302 WK301-WK305
White Sample Tray Yes Yes Yes
Black Sample Tray N/A N/A Yes
Trans Green light Sample Tray Option Yes Yes
Trans White light Sample Tray Option Option Yes
Single Board computer Core 4 i3 CPU with five parallel USB port, 4.3GHz, 500G SSD, HDMI port, Wi-Fi
OS system MS Windows 11
Dimensions (W x D x H) 400 x 330 x 580mm
Weight 30 kg
Power 100-240 V, 50-60 Hz
Optional
External Touch Screen 20” LCD Screen with touch panel
Thermal printer Digital
Laser printer Color Laser Printer
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1155031 Addition key board and mouse
1155032 External 20” LCD with touch panel
1146003 Digital Thermal printer
1146007 Thermal paper 5 rolls/pack
