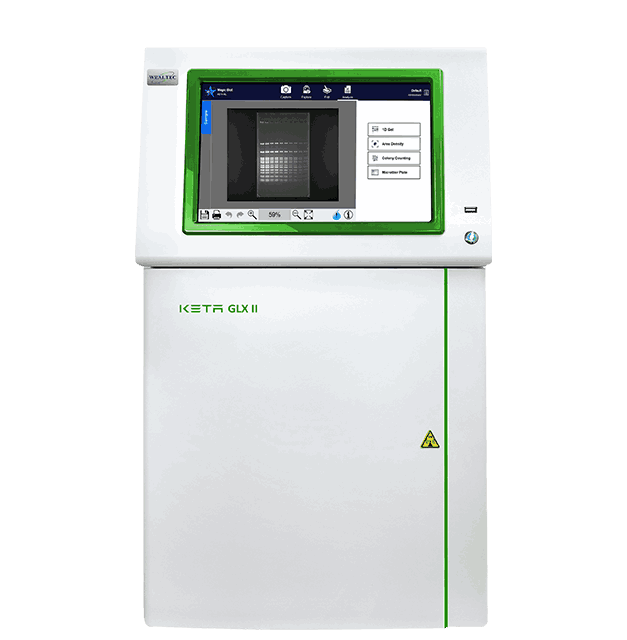

Motorized Gel Documentation System

The KETA GLX II is a research-grade computer-controlled gel documentation device appropriate for molecular biology laboratories, featuring an embedded SBC, 12" touch panel LCD, 5.0-megapixel camera, motorized lens, and motorized filter wheel coupled with a high transparent amber filter.
KETA GLX

Features

  • Optional BW-20 blue/white light transilluminator for Bio-safe application
  • UV activation mode for stain free gel
  • GCM function provide user get good shot anytime
  • Energy save mode keep long life time of camera
  • Wi-Fi transmission capability
  • Comply file format PCX, TGA, DFN (GEL), PNG,IMG, TIFF, BMP, JPG, GIF, etc.

Applications

  • Education, university, academic and research institute
  • Agarose gel stain with EtBr, Safe Dye
  • Protein gel stain with Coomassie Brilliant blue, X Ray film
  • Micro titer, ELISA plate
  • 2D Gel, all color metric target
  • Gray level analyzes

Specifications

Model KETA GLX II
Camera depth 16-bit
Operation temperature 0-40°C
Chip size 2/3"
Resolution 5.0M pixels
Control and Display 12” Touch Screen/SBC
Cooling Air, R-T
Five position filter wheel Standard
Filter wheel 55 mm
Motorized Lens 11.5-69 mm, f1.4
Epi-light source Dual U7 LED
UV transilluminator MD-20S
Magic 1DX software Yes
Wi-Fi transmission Yes
OS system MS Windows 11
Filter WK 101
Dimensions (W x D x H) 400 x 330 x 580mm (W x D x H)
Weight 30 kg
Power 100-240 V, 50-60 Hz
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1146003 Digital thermal printer
1147007 Thermal paper 5 rolls/pack
1155031 Additional keyboard & mouse
