Gene Delivery System

GDS-80 can be widely used in the fields of gene therapy, gene transient or stable expression research, agriculture biotechnology research, vaccine research, and immune research. It is a highly efficient and convenient gene transfection tool to deliver not only micro carrier-coated samples for plant applications but also naked DNA samples for animal applications.

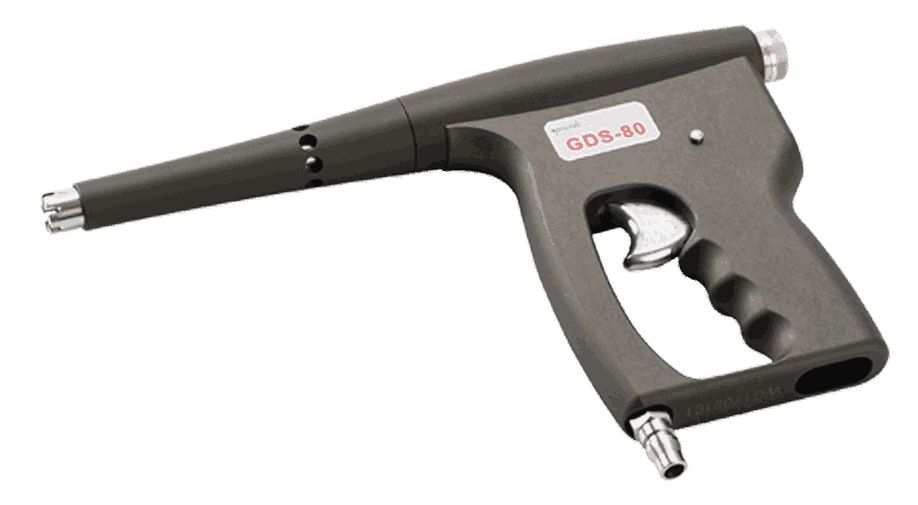

GDS-80

Features

  • Available to use both Helium and Nitrogengas
  • Portable one system for plant and animal cell
  • Naked DNA delivery for animal applications
  • No rupture disc and vacuum pump required
  • Simple preparation of bombardment
  • Barrel is autoclavable
  • Minimum cell damage

Applications

  • Gene therapy, gene transient or stable expressionresearch
  • Education, university, academic and research institute
  • Food industrial and inspection laboratory
  • Drug discovery, Biotechnology company
  • Vaccine research and immune research
  • Agriculture biotechnology research
  • Proteomics, genomics core facility

Specifications

Model GDS-80
Main body All stainless steel made mainly consist of O-ring in between ensure no gas leakage. Weighted around 1.2 kg.
Sample loading sleeve Finger-tight eight sample loading holes without using tools. Allow right-handed and left-handed users to adjust the barrel for their regular using habit.
Barrel Autoclavable 4.5 (plant) / 10 (animal) mm inner diameter barrel designed with inner mirror surface keeps no resistance while performing particle delivery.
Mechanical differential needle value Adjustable differential needle valve optimizes spray even.
Safety Pressed-release safety trigger prevents mistake happened when the process is not ready yet.
Connection Double side stainless steel quick connector equipped with ID 8 mm Nylon hose for connecting main body and gas cylinder within a second without any tool.
Adjust & display Two pressure gauges equipped regulator with flow meter, adjustable up limit to 80 psi bypass releasing valve prevent to damage the trigger.
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1081011 Spread even calibration kit, complete with 1081201 target spacer x 1
1081101 4.5 mm diameter barrel, 1 pc
1081102 10 mm diameter barrel, 1 pc
1081111 GDS-80 system main body
1081112 Sample loading sleeve, 1 set
1081113 O-ring, 2 pcs/pk
1081114 Gas pressure regulator
1081115 Hose assembly
1081121 UTS-10 Universal Target Spacer complete include variable distance arm, lid stopper, hollow supporter, pollen cup, shields (20 x 1, 35 x 1, 50 mm) x 1, tetra-claw leaf clamp, sample support x 2, sample soft bed x 5 for use in live plant transfection
1081122 LC-10 Leaf clamp complete include variable distance arm, supporter, tetra-claw leaf clamp, sample soft bed x 5 for live plant use only
1081123 LC-5 Leaf clamp complete include variable distance arm, supporter, small tetra-claw leaf clamp (Ø=15 mm), sample soft bed (Ø=14.8 mm) x 5 for live plant use only
1081131 GDS-80 distance-adjustable stand for quick pick and place
1081201 Dish type target spacer for plant, height:3 cm, diameter: 10 cm
1081202 Dish type target spacer for plant, height:6 cm, diameter: 10 cm
1081211 Sample support, Ø=0.28 mm, 10 ea./pkg
1081212 Pollen cup, 1 ea.
1081213 Tetra-claw leaf clamp
1081214 Sample soft bed x 20
1081215 Shield 20 mm (H) x 1
1081216 Shield 35 mm (H) x 1
1081217 Shield 50 mm (H) x 1
1081218 Lid stopper x 1
1081219 Shield 20 mm (H), pack of 5 x 1081215
1081220 Shield 35 mm (H), pack of 5 x 1081216
1081221 Shield 50 mm (H), pack of 5 x 1081217
1081222 Pollen cup pack of 5 x 1081212
1081223 Small Tetra-claw leaf clamp (Ø=15 mm) x 1
1081224 Supporter for LC-5 x 1 (Ø=15 mm)
1081225 Small sample soft bed (Ø=14.8 mm) x 20
1081226 Shield 10 mm (H) x 1
1081231 Adapter from W22-14 (Right Helix, Inner teeth) to CGA 540 - China
1081232 Adapter from W22-14 (Right Helix, Inner teeth) to BS3 - Hong Kong, British, India
1081233 Adapter from W22-14 (Right Helix, Inner teeth) to CGA 580, CGA-DISS 718 (> 4000 psi) - USA, European Union
1081234 Adapter from W22-14 (Right Helix, Inner teeth) to DIN 6 (He) - Germany, Belgium
1081235 Adapter from W22-14 (Right Helix, Inner teeth) to DIN 10 (N2) - Germany, Belgium
1081236 Adapter from W22-14 (Right Helix, Inner teeth) to Uni4412 (He) - Italy
1081237 Adapter from W22-14 (Right Helix, Inner teeth) to Uni4409 (N2) - Italy
1081238 Custom-made Adapter from W22-14 (Right Helix, Inner teeth) - by request
1081251 UTS support mount
1081252 Variable distance arm
1081253 Hollow Supporter
1081254 Leaf Supporter
1081255 Adapter from 32 to 28 mm
1081260 L-type wrench set (3 mm and 2.5 mm)
