Blue and White Light Transilluminator

BW-20 transilluminator equipped with blue and white light dual color selectable LED and light guide filter provides most even trans light emission. Applicable for Bio-Safe applications in whole series of imaging systems through built-in power source or external power adaptor.

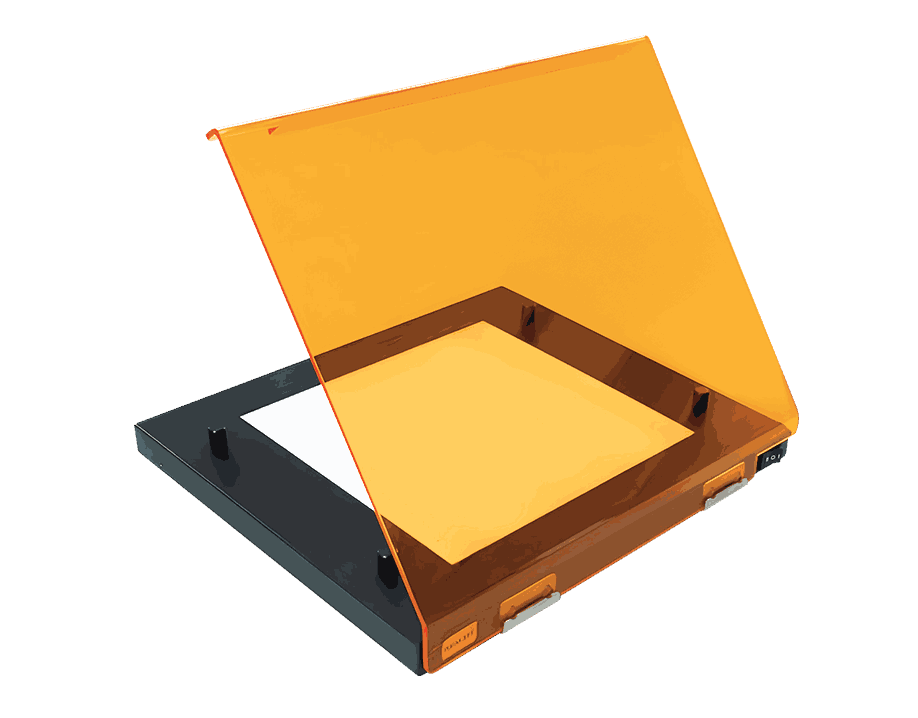

BW-20 transilluminator

Features

  • Compatible for all brand Gel Documentation
  • White and Blue light transparent technology
  • Compact and high efficiency system
  • Superior uniformity at working zone
  • Applicable for Bio-Safe application
  • High intensity long life LED device
  • Small footprint and light weight

Applications

  • Education, university, academic, research institute
  • Analytical chemistry and molecular laboratory
  • Food industrial and inspection laboratory
  • Drug discovery and Biotechnology company
  • Proteomics and genomics core facility
  • Enzyme reaction and immunology

Specifications

Model BW-20
Filter size 200 x 200 mm
Filter type Light guide filter
Wavelength Visible / 465 ± 5 nm
Light source 32 x White LEDs + 32 x Blue LEDs
Switch Blue/White light switchable
Cover frame material Aluminum
Protection cover Yes
Power 100-240 V, 50-60 Hz
Dimensions (W x D x H) 300 x 280 x 40 mm
Weight 1.2 kg
Certification CE
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1146101 Orange cover for BW-20
