Block Heater

HB-1/HB-2 are reliable benchtop drybath block heater in the market, target for all kinds laboratory use, high accuracy temperature control technique brings most trustable temperature requirement, variety Aluminum block select. HB-1 for single block, HB-2 for dual block, both two models no need to additional temperature probe for temperature detection.

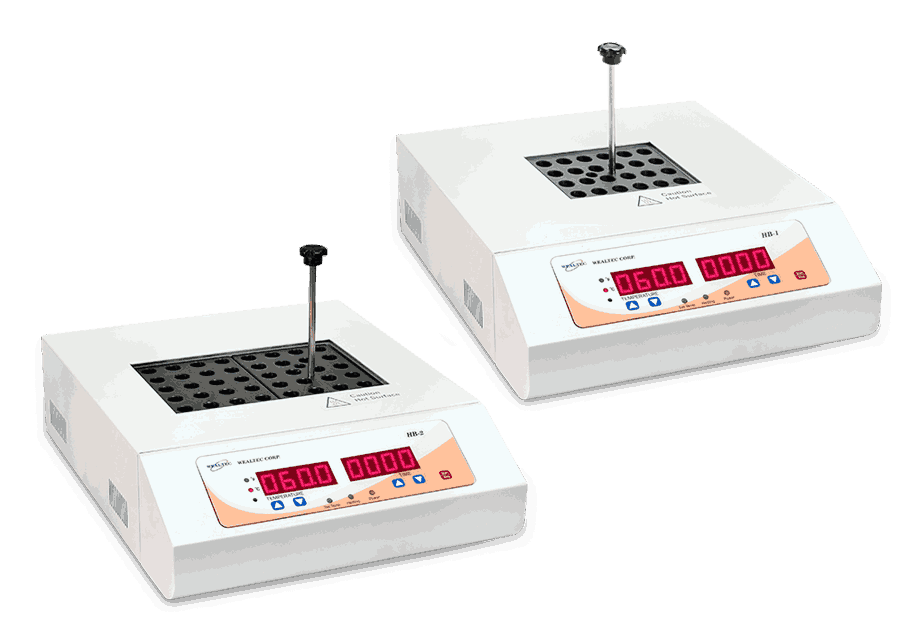

HB-1 / HB-2

Features

  • Low cost, safe heating device at laboratory
  • Room temperature to 200℃
  • Overheat protection
  • Selectable wide variety aluminum block
  • No more external temperature probe
  • COD reactor

Applications

  • Corrosive testing in environmental control laboratory
  • Organic compound digestion in food industrial
  • Education, university, academic and research institute
  • Drug discovery, Biotechnology company

Specifications

Model HB-1 HB-2
Temperature range 30-200ºC
Temperature stability < 1ºC @ 100ºC by 120 minutes test
Temperature uniformity < 0.5ºC @ 100ºC
Temperature accuracy < 1ºC @ 100ºC (@ 230 V / 50 Hz, 115 V / 60 Hz)
Temperature controller Pre-calibrated
Display and Control Two large sizes four-digit LED display
Temperature Calibration Built-in and pre-calibrated
Heating rate < 18 minutes from ambient to 100ºC @ 230 V, 50 Hz
Number of blocks 1 2
Heat power 300 W 600 W
Over temperature cutoff 212ºC
Timer 0-999
Power 120 V / 60 Hz; 230 V / 50 Hz, voltage variation < 2%
Cabin dimensions (W x D x H) 102 x 78 x 46 mm 156 x 102 x 46 mm
Dimensions 310 x 250 x 80 mm
Weight without block 3.3 kg 4.8 kg
Certification CE
The spec is subject to change without prior notice.

Accessories

Catalog No. Accessories
1092101 BK01, 12 x 16 mm test tubes aluminum block for HB-1/HB-2
1092102 BK02, 20 x 1.5 mL microtubes aluminum block for HB-1/HB-2
1092103 BK03, 30 x 0.5 mL microtubes aluminum block for HB-1/HB-2
1092104 Block extractor
1092105 Custom-made block for HB-1/HB-2
1092106 BK04, 88 x 0.2 mL microtubes aluminum block for HB-1/HB-2
1092111 BK05, 12 x 19 mm test tubes aluminum block for HB-1/HB-2
1092112 BK06, 24 x 1.5 mL microtubes aluminum block for HB-1/HB-2
1092113 BK07, 15 x 16 mm test tubes aluminum block for HB-1/HB-2
1092214 BK08, 8 x 23.5 mm aluminum block for HB-1/HB-2
1092215 BK09, 8 x 2 mL with 12 x 1.5 mL aluminum block for Eppendorf tubes
1092201 Automatic voltage regulator for high accuracy temperature requirement, 120 V / 60 Hz
1092202 Automatic voltage regulator for high accuracy temperature requirement, 230 V / 50 Hz
